PG 3 PLANS IN 2025
BACK TO SKY9PILOT'S PLANS PAGE 1 BACK TO PG 2
CLICK ON THE PICTURE TO DOWNLOAD THE PLAN
These plans are drawn for experienced modelers who have built from plans before.
The finding of CG is based on McComb's Tail Volume Coefficient (TVo) as popularised by Don DeLoach. Grossly oversimplifying for the sake of brevity; a FF scale model will be more likely to fly well if the TVo (an indication of tail effectiveness) is about 0.65 or better. Here's a link: https://www.stickandtissue.com/forum/cgi-bin/yabb2/YaBB.pl?num=1680025808
Most fuselages are built on a ladder jig or jig of similar arrangement. Check the video below re: alternate ladder jig.
AERO L-29 DELFIN 16" CLG

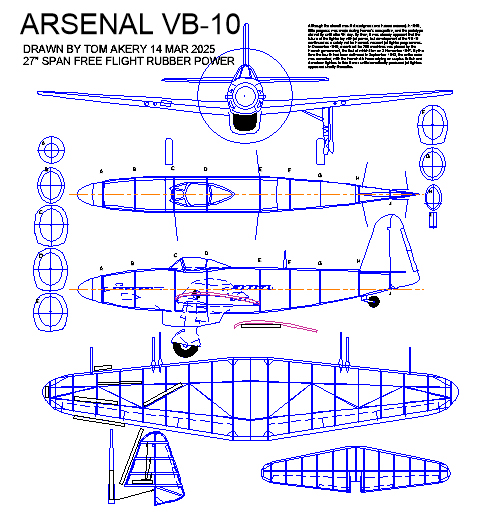

AICHI M6A1 SEIRAN ARSENAL VB-10 27"

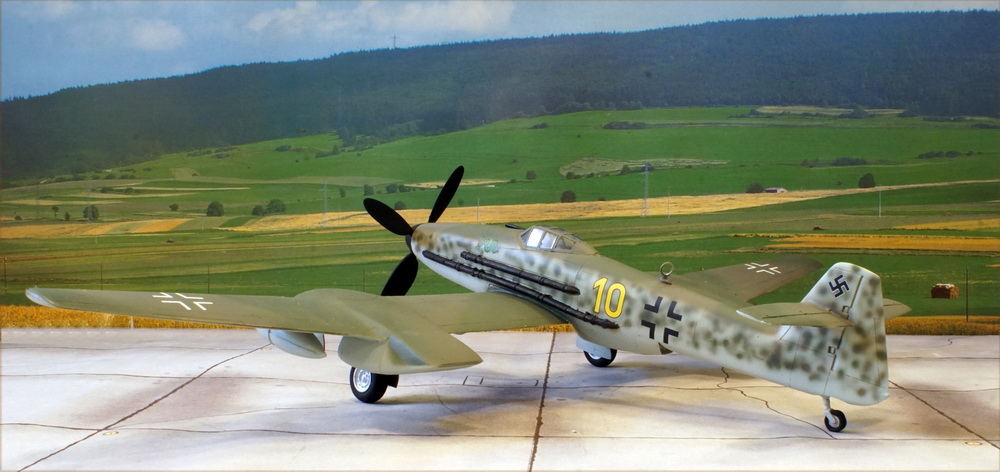

BISNOVAT SK-1 27" BELLANCA 28-90 27" BLOHM&VOSS BV-155V3 36"
BOEING XB-47D TURBOPROP 36"
EMBRAER EMB-314 TUCANO 16"

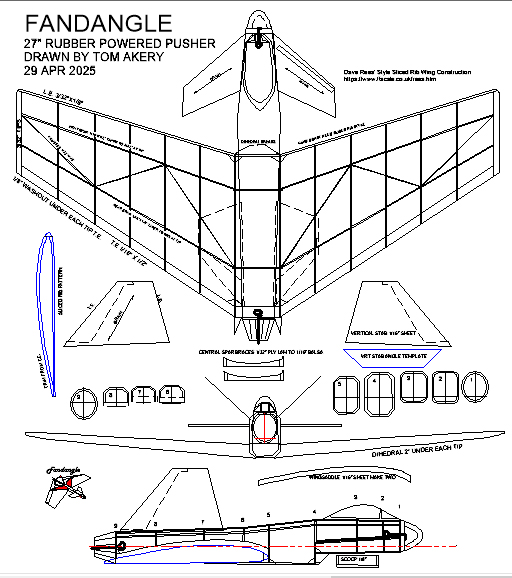

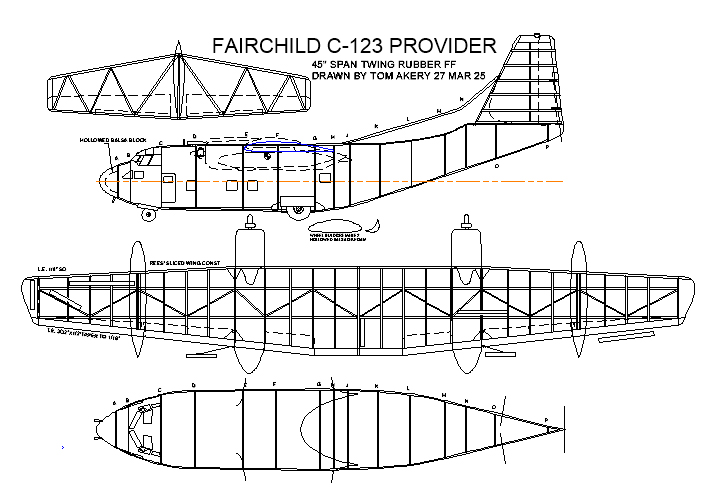

FAIRCHILD C-123 PROVIDER 45" FANDANGLE 27"
FOKKER F-27 FRIENDSHIP 36"

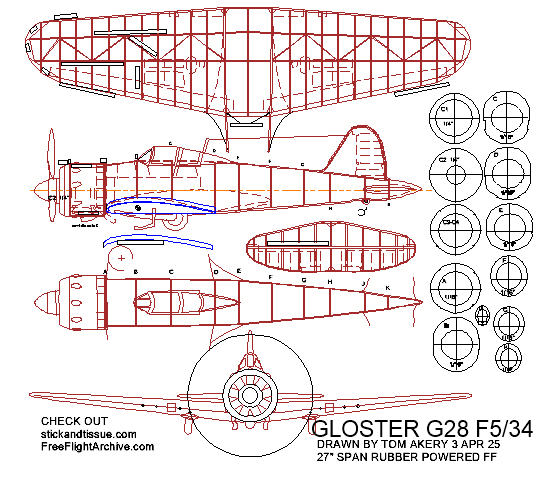

GLOSTER G-28 F5/34 27"

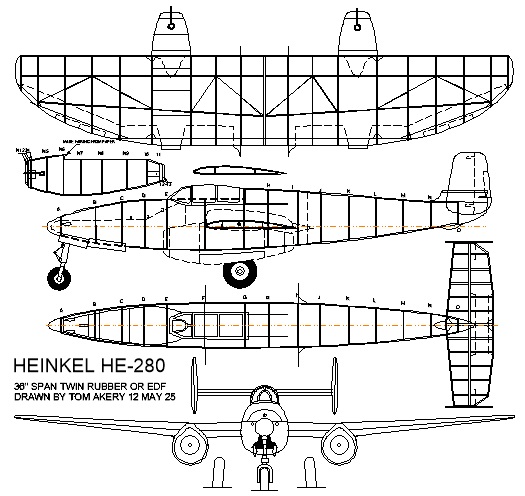

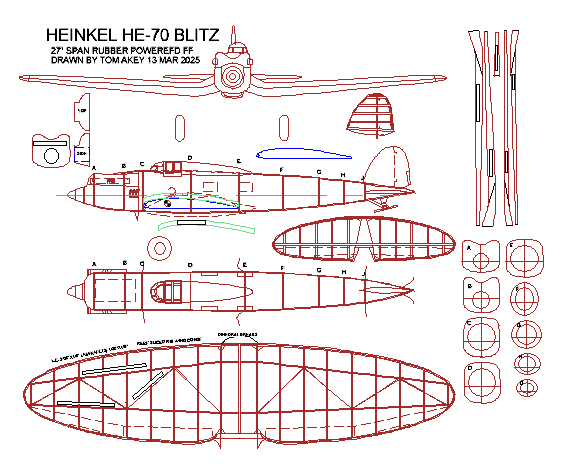

HEINKEL HE-70 BLITZ 27" HEINKEL HE-280 36"
LEIDOS BRONCO II 27"

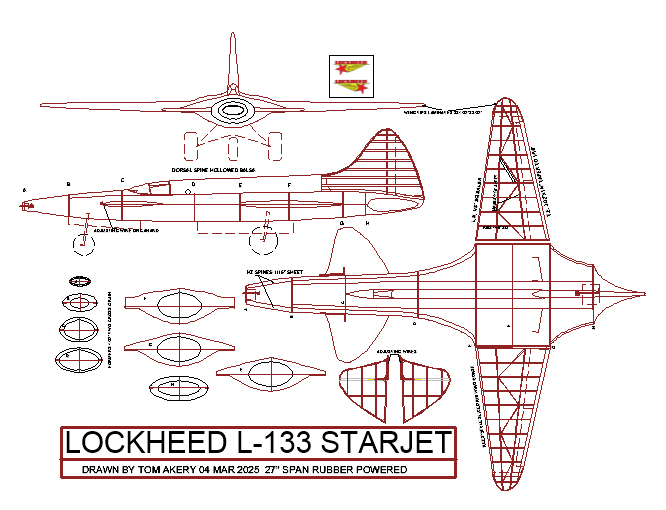

LOCKHEED U2C 36" LOCKHEED L-133 STARJET 27"

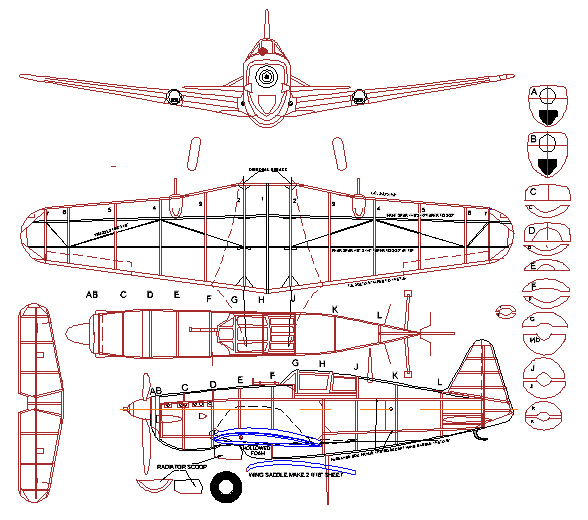

MORANE SAULNIER MS-406 27" & DIMER

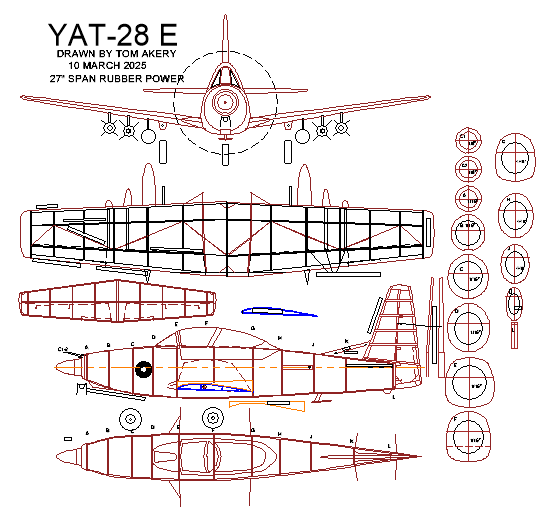

NAA YAT-28E 27" NAA F-86D SABRE DOG 27" N.A.A. RD-1386A 27"
PIPER PA-6 SKY SEDAN 27"
SWISS FFA P-16 27"

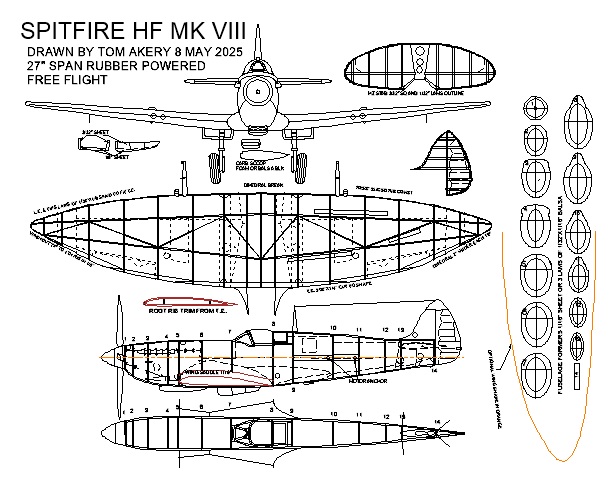

SUPERMARINE SPITFIRE HF MK VIII 27"

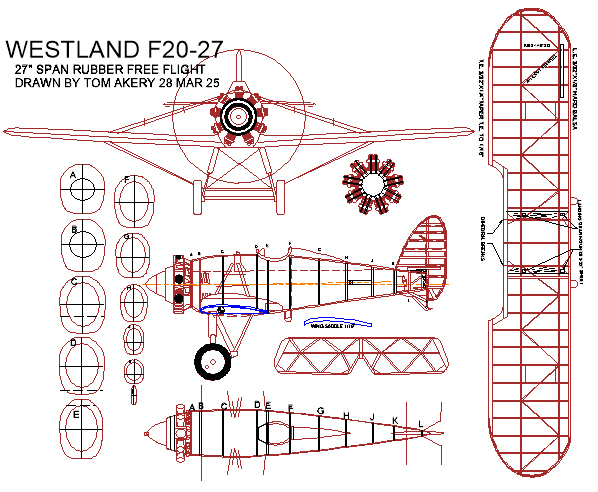

WESTLAND F20-27 MONOPLANE 27"
YAKOVLEV UT-1 27"
